The double union ball valve is an essential component in modern piping and fluid control systems, offering a reliable means of isolating or controlling the flow of liquids or gases. As an improved version of the standard ball valve, the double union ball valve combines versatility, ease of maintenance, and high performance in various industries such as water treatment, chemical processing, and HVAC (heating, ventilation, and air conditioning) systems.

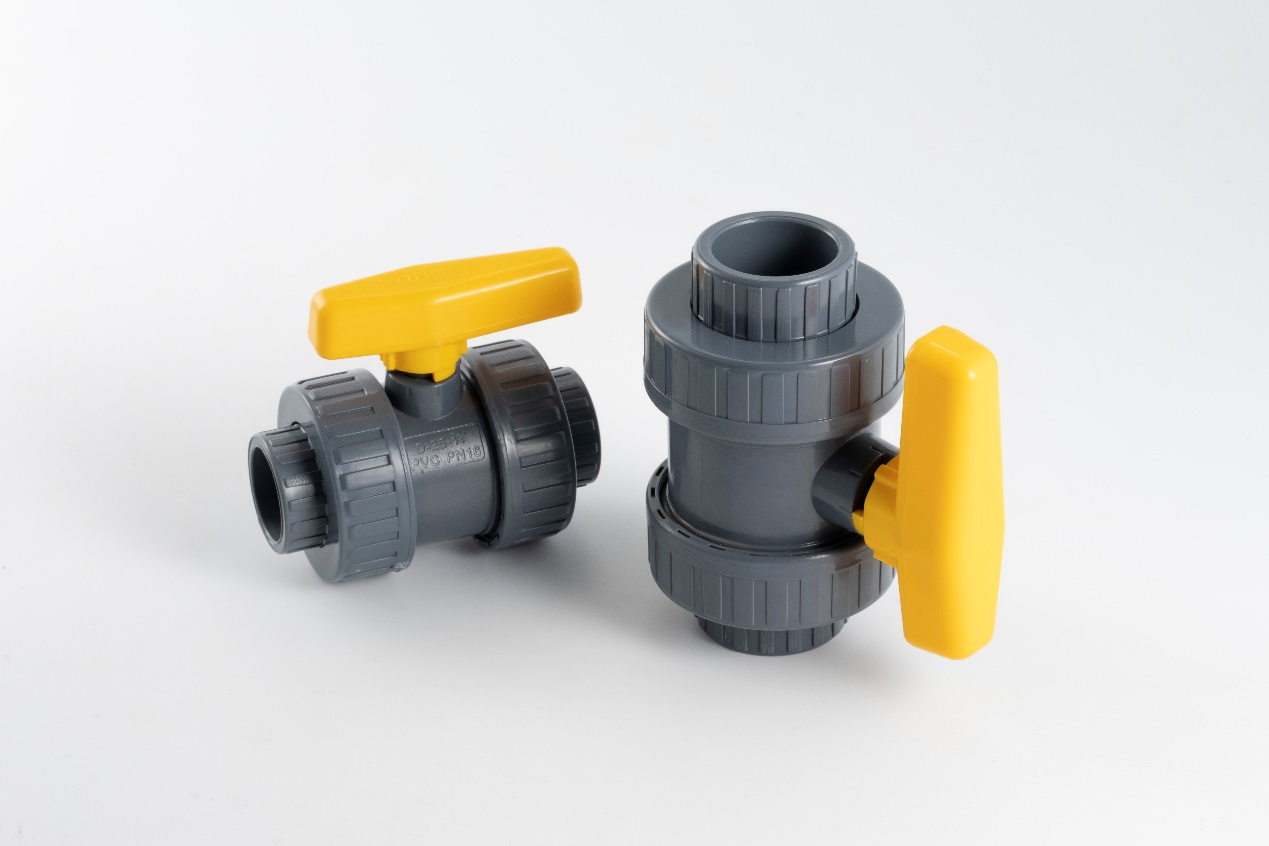

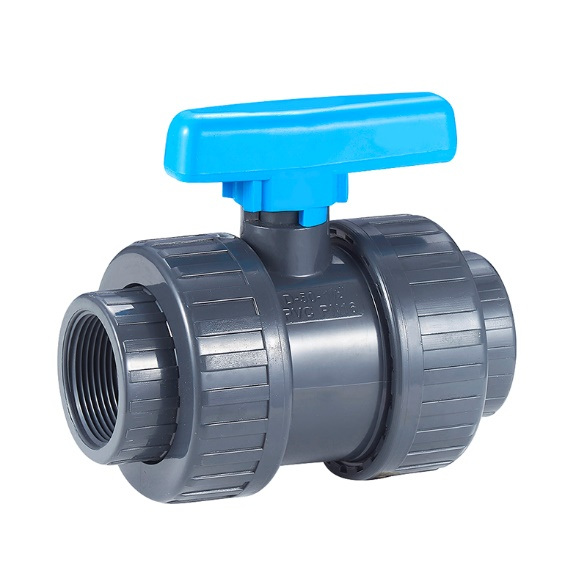

A double union ball valve is a type of ball valve that features two union connections on either side of the valve body. These unions allow for easy installation and removal without disturbing the rest of the piping system. The valve itself operates using a ball with a central hole or port, which rotates 90 degrees to either allow or block the flow of fluid.
The “double union” feature refers to the two union connections, which are typically threaded, flanged, or socket welded, making it easier to disconnect the valve from the pipeline for maintenance or replacement without affecting the rest of the system.
Advantages of Double Union Ball Valves
1.Ease of Maintenance: One of the standout benefits of the double union ball valve is the ease with which it can be removed or replaced. The union ends make disassembly simple and do not require special tools or extensive disconnection of the pipeline, saving time and reducing downtime.
2.Leak Prevention: When properly maintained, double union ball valves provide excellent sealing capabilities. The seals and seats are designed to prevent leaks, even under high pressure, making them highly reliable for systems that require tight shutoffs.
3.Space-Saving Design: The compact and robust construction of the double union ball valve ensures that it occupies minimal space in the system. This is particularly beneficial in environments where space is limited, such as in industrial piping systems.
4.Durability: Double union ball valves are designed to withstand high pressures, temperatures, and corrosive fluids. The materials used in their construction (such as stainless steel, brass, or PVC) make them suitable for a wide range of applications.
5.Versatility: These valves are available in various materials, sizes, and pressure ratings, making them adaptable for numerous applications, from residential plumbing to industrial chemical processing.
Choosing the Right Double Union Ball Valve
Selecting the correct double union ball valve requires considering several factors:
1.Material Compatibility: Ensure that the valve material is compatible with the fluid or gas being controlled. Common materials include brass, stainless steel, PVC, and polypropylene.
2.Pressure and Temperature Ratings: Always check the pressure and temperature specifications to ensure the valve can handle the operating conditions of your system.
3.End Connections: Double union ball valves come with different connection types, including threaded, flanged, or compression fittings. Choose the one that matches your existing piping system.
4.Size: The size of the valve should match the diameter of your pipeline to ensure efficient flow control and prevent pressure loss.
5.Actuation: While most double union ball valves are manually operated, they can also be fitted with electric, pneumatic, or hydraulic actuators for automatic operation.
The double union ball valve is an indispensable component for fluid and gas control in a wide range of industrial applications. Its ability to offer easy maintenance, reliable sealing, and adaptability to different systems makes it a popular choice among engineers and maintenance teams. Whether you’re working with water, chemicals, or gases, the double union ball valve provides an effective, durable, and user-friendly solution for managing fluid flow in complex piping systems.
